Color Dispensing Control Panel

🧪 Color Dispensing Control Panel is a modern Python GUI application designed to manage paint color dispensing operations. It integrates smoothly with an STM32-based pump control system and MySQL database for robust, precise, and user-friendly color dispensing, stock management, and bill of materials (BOM) handling. A fully integrated desktop GUI for managing color dispensing, stock tracking, and calibration in automated liquid systems. Built with Python and connected to STM32 firmware via serial communication, this app supports real-world manufacturing workflows with robust MySQL integration.

---

Table of Contents

• Project Overview
• Features
• Technology Stack
• Prototype Demo Videos
• Installation
• Database Setup
• Usage
• Serial Communication
• Exporting Reports
• Troubleshooting
• Contributing
• Credits
• License

---

Project Overview

This desktop application is tailored for paint dispensing workflows where color formulations (BOMs) and pump calibrations matter. It includes:

• Color Entry: Manage base colors and associate pump numbers.
• BOM Entry: Define color mixes with percentages.
• Stock Entry: Record incoming stock quantities with batch numbers and dates.
• Dispensing: Send volume commands to STM32 pumps with calibration and real-time logs.
• Export: Save stock history as CSV and Excel reports.
• Filtered stock history with date range support for auditing and inventory control.
• Simulated actual dispensing volumes with ±0.5% variance and calculated differences.
• Export of dispensing logs including actual and difference volumes for each batch.

---

Features

• Elegant and responsive Tkinter GUI with light theme.
• Real-time serial communication with STM32 pumps.
• Dynamic calibration per pump and volume range.
• Pump ID remapping for hardware constraints (e.g., Pump 8 ↔ Pump 9).
• Stock management integrated with MySQL database.
• Date-filtered stock history log.
• Export stock and dispensing reports to CSV and Excel formats.
• Simulated actual quantity and difference recording for dispensing sessions.
• Multi-window layout separating dispensing and stock history views.
• User-friendly error handling and status messages.

---

Technology Stack

• Python 3.12
• Tkinter for GUI
• MySQL for database management
• PyMySQL for Python-MySQL connectivity
• tkcalendar for date selection widgets
• pandas for CSV and Excel export
• openpyxl for Excel file handling
• Serial communication via pyserial (connects to STM32 firmware)
• random module to simulate slight variance in actual dispensed volume

---

Prototype Demo Videos

---

Feature	Preview	Watch

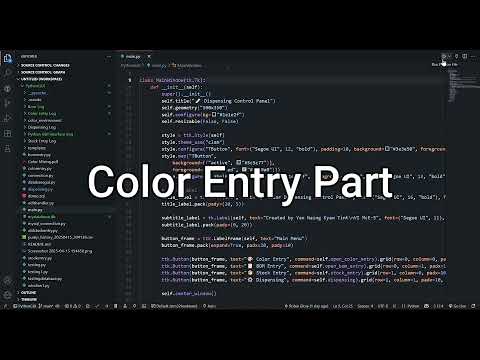

1. Color Entry		Watch Video
2. BOM Entry		Watch Video

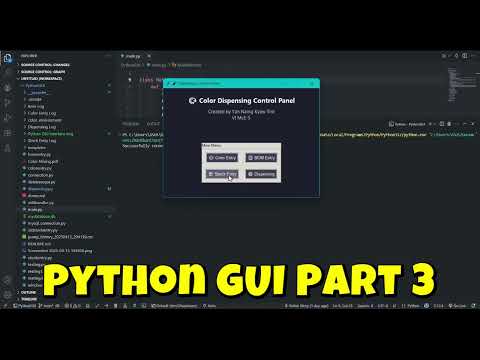

3. Stock Entry		Watch Video

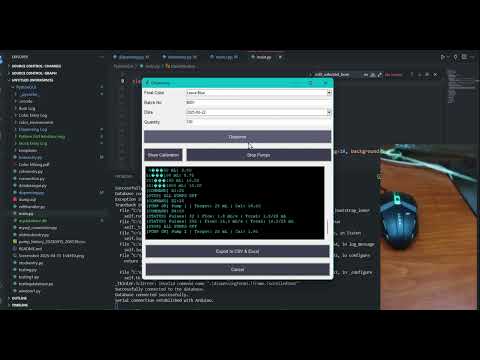

4. Dispensing System		Watch Video

---

Installation

1. Clone the repository:

   git clone https://github.com/yourusername/ColorDispensingControlPanel.git
   cd ColorDispensingControlPanel

2. Create and activate a Python virtual environment (optional but recommended):

   python -m venv venv
   source venv/bin/activate  # Linux/macOS
   venv\Scripts\activate     # Windows

3. Install dependencies:

   pip install -r requirements.txt

   Ensure your requirements.txt includes:

   pymysql
   tkcalendar
   pandas
   openpyxl
   pyserial


4. Setup MySQL database:

   • Create the database mkt.
   • Create required tables: ColorTable, BOMHeading, BOMDetail, StockRecord (see Database Setup section).
   • Make sure BOMHeading table includes columns: ActualQuantity and DifferenceQuantity (for volume simulation).

5. Configure database connection:

   Edit the database credentials in your Python files (e.g., stockentry.py):

   self.db = Database(host='localhost', user='your_user', password='your_password', database='mkt')

---

Database Setup

Ensure the following tables exist with the given structure (sample):

CREATE TABLE ColorTable (
    ColorID VARCHAR(255) PRIMARY KEY,
    BaseColor VARCHAR(255) NOT NULL,
    PumpNumber INT NOT NULL,
    Stock INT NOT NULL,
    Date DATE NOT NULL
);

CREATE TABLE BOMHeading (
    BH_ID VARCHAR(10) PRIMARY KEY,
    FinalColor VARCHAR(255) NOT NULL,
    Quantity FLOAT DEFAULT 0,
    ActualQuantity FLOAT DEFAULT NULL,
    DifferenceQuantity FLOAT DEFAULT NULL,
    Date DATE NOT NULL
);

CREATE TABLE BOMDetail (
    DetailID INT AUTO_INCREMENT PRIMARY KEY,
    BH_ID VARCHAR(10),
    BaseColor VARCHAR(255),
    Percentage INT,
    FOREIGN KEY (BH_ID) REFERENCES BOMHeading(BH_ID)
);

CREATE TABLE StockRecord (
    RecordID INT AUTO_INCREMENT PRIMARY KEY,
    ColorID VARCHAR(255) NOT NULL,
    BatchNumber VARCHAR(255) NOT NULL,
    Come INT NOT NULL,
    Date DATE NOT NULL
);

---

Usage

Run the main application:

python main.py

• Navigate through the main menu for Color Entry, BOM Entry, Stock Entry, and Dispensing.
• Use the date filters in Stock Entry to view and export stock history.
• In Dispensing, choose colors and volumes to send commands to STM32 pumps.
• Monitor calibration values and pump logs in real time.
• Simulated actual dispensing volumes will be saved in the database with small ±0.5% variance.
• Differences between target and actual volume are recorded and exported.

---

Serial Communication

The application communicates with STM32 microcontroller via serial port (default: COM8, baud rate: 9600). Ensure:

• Correct COM port is set.
• STM32 firmware is running and responding to commands.
• Pump calibrations are synchronized with GUI settings.
• Simulated actual volume updates occur after dispensing each batch.

---

Exporting Reports

Stock and dispensing data can be exported as:

• CSV: Comma-separated text format for compatibility.
• Excel (.xlsx): Well-formatted spreadsheet with dates, quantities, actual and difference values.

Exports save automatically in the folder:

C:\Users\ASUS\Documents\MinKhantTun(Project)\PythonGUI\PythonGUI\Stock Entry Log

or

C:\Users\ASUS\Documents\MinKhantTun(Project)\PythonGUI\PythonGUI\Dispensing Log

You can modify the folder path in stockentry.py and dispensing.py if needed.

---

Troubleshooting

• Database Connection Error: Verify MySQL credentials and database server status.
• Serial Communication Issues: Confirm correct COM port and cable connection.
• Pump Calibration Mismatches: Re-check calibration values in Dispensing calibration menu.
• GUI Layout Problems: Ensure consistent use of geometry managers (pack or grid) in your Tkinter widgets.
• Missing Dependencies: Install required Python packages with pip install -r requirements.txt.
• Export Data Missing: Make sure dispensing has been completed at least once for each batch to store simulated values.

---

Contributing

Contributions are welcome! Please:

• Fork the repository.
• Create a feature branch (git checkout -b feature/your-feature).
• Commit your changes (git commit -m 'Add some feature').
• Push to branch (git push origin feature/your-feature).
• Open a Pull Request.

---

Credits

• Developed by Yan Naing Kyaw Tint (Robin) — Mechatronics and Computer Science student.
• Inspired by embedded systems and paint dispensing automation needs.
• Uses open source libraries: Tkinter, PyMySQL, tkcalendar, pandas, openpyxl.
• Based on serial integration with firmware from companion repo: stm32-water-dispense-controller
• This GUI repository: PythonGUI_STM32_WaterDispensing

---
