Scanpath Studio shows you how people read. Load eye-tracking-while-reading data and watch each trial unfold over the text, exactly where it sat on the screen — then compare participants, analyze a corpus, and export figures ready for a paper.
-
As a desktop app, the easiest way to work with your own data: Windows · macOS (Apple silicon) · Linux.
-
With pip (Python 3.11–3.14):
pip install scanpath-studio scanpath-studio # opens the app in your browser -
In the browser, to try it on the bundled demo data: the live demo at https://scanpath-studio.streamlit.app.
The desktop and pip installs keep your data on your own machine, handle large datasets, and download the public corpora (PoTeC, OneStop) in one click. The hosted demo runs on Streamlit Community Cloud, with limited memory and no corpus downloads.
- See the reading: fixations, saccades, heatmaps and raw gaze over the text at its true on-screen position, with fixations colored by any column.
- Replay it in real time or faster, and export it as HTML, GIF or MP4.
- Compare participants: overlay two trials or place them side by side — even from two different datasets.
- Analyze a corpus per text, participant or group, from the reading measures your data brings, each defined in the computation register.
- Triage, export and share: tag and filter trials, export one figure or a zip for every trial, and share a link that reopens the exact view.
 |
 |

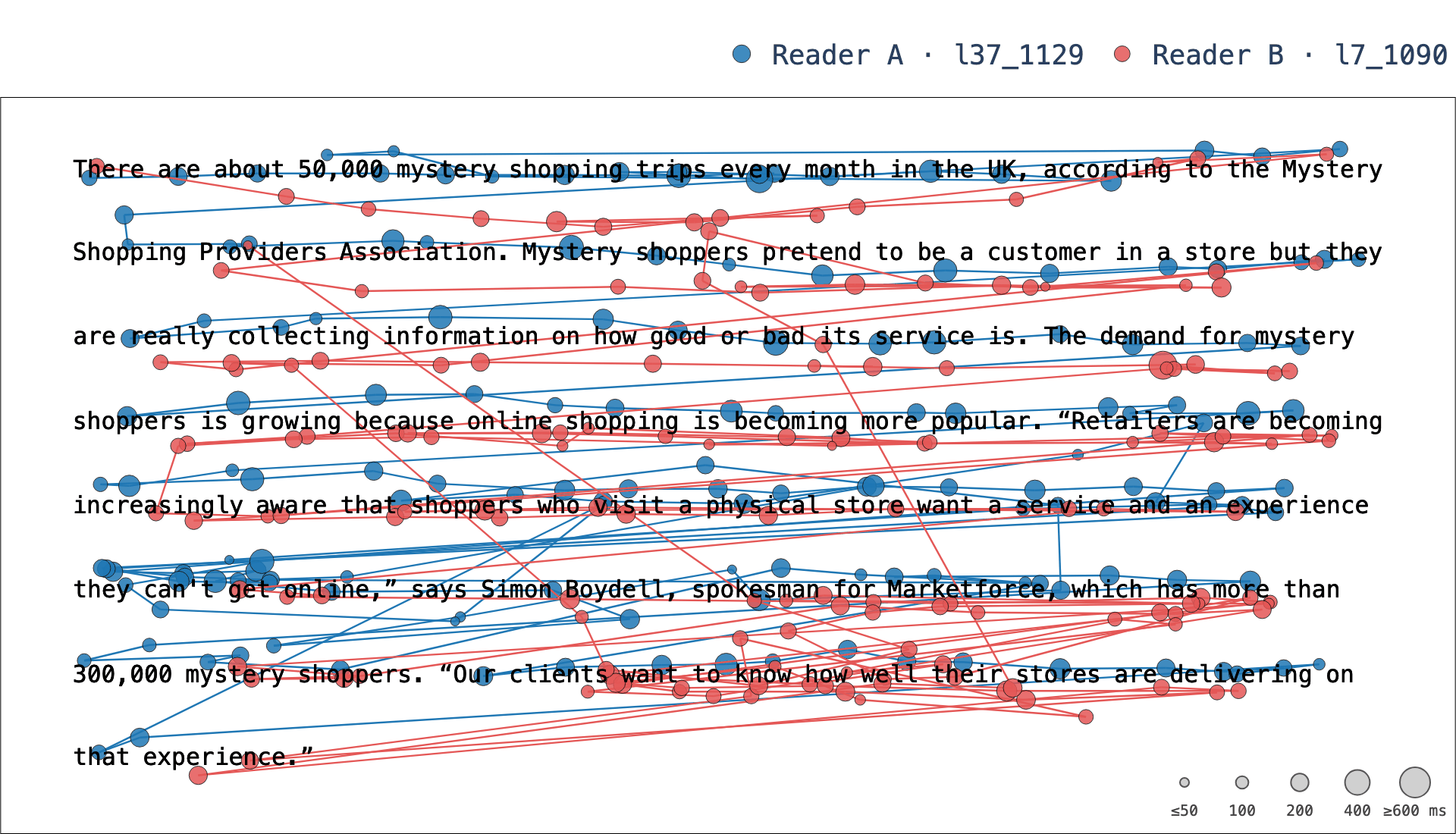

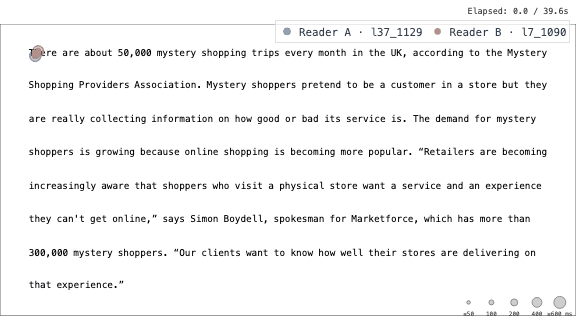

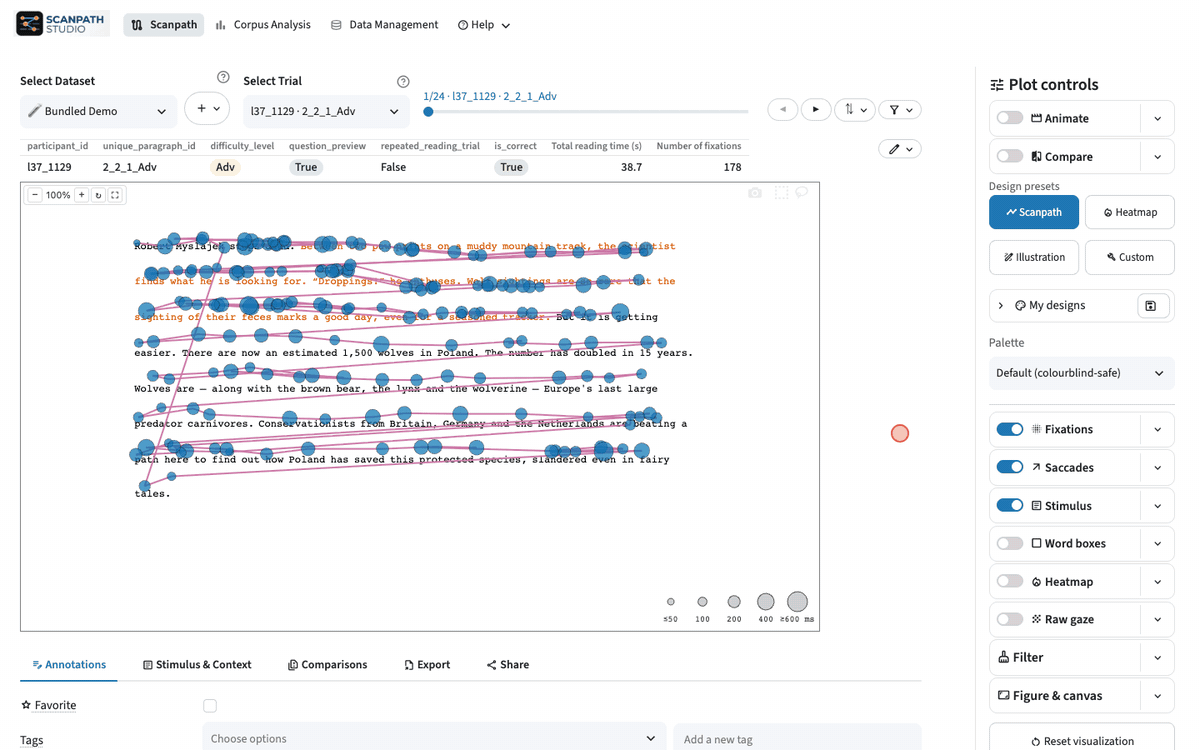

| A trial, replayed fixation by fixation | Two participants on one paragraph, overlaid (animated) |
The app has three views: 🗺️ Scanpath for one trial at a time, 📊 Corpus Analysis for the whole dataset, and 🗂️ Data Management for loading and configuring datasets. The feature guides walk through each one.
One task each, recorded in the app on the bundled demo. The bar at the top counts the clicks as they happen and names each step.
 |
 |

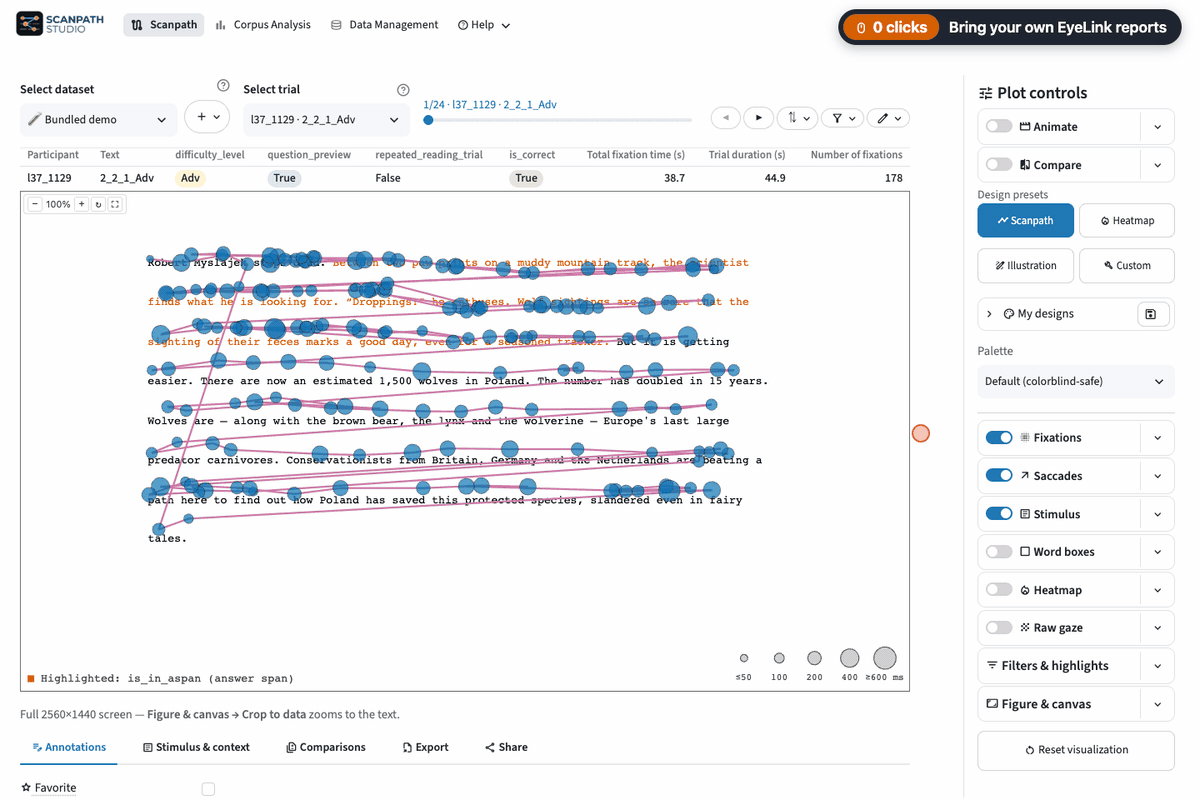

| Add your own data: EyeLink's fixation and interest-area reports, their columns detected for you | Find trials: narrow them by condition and participant, then step through what is left |
 |
 |

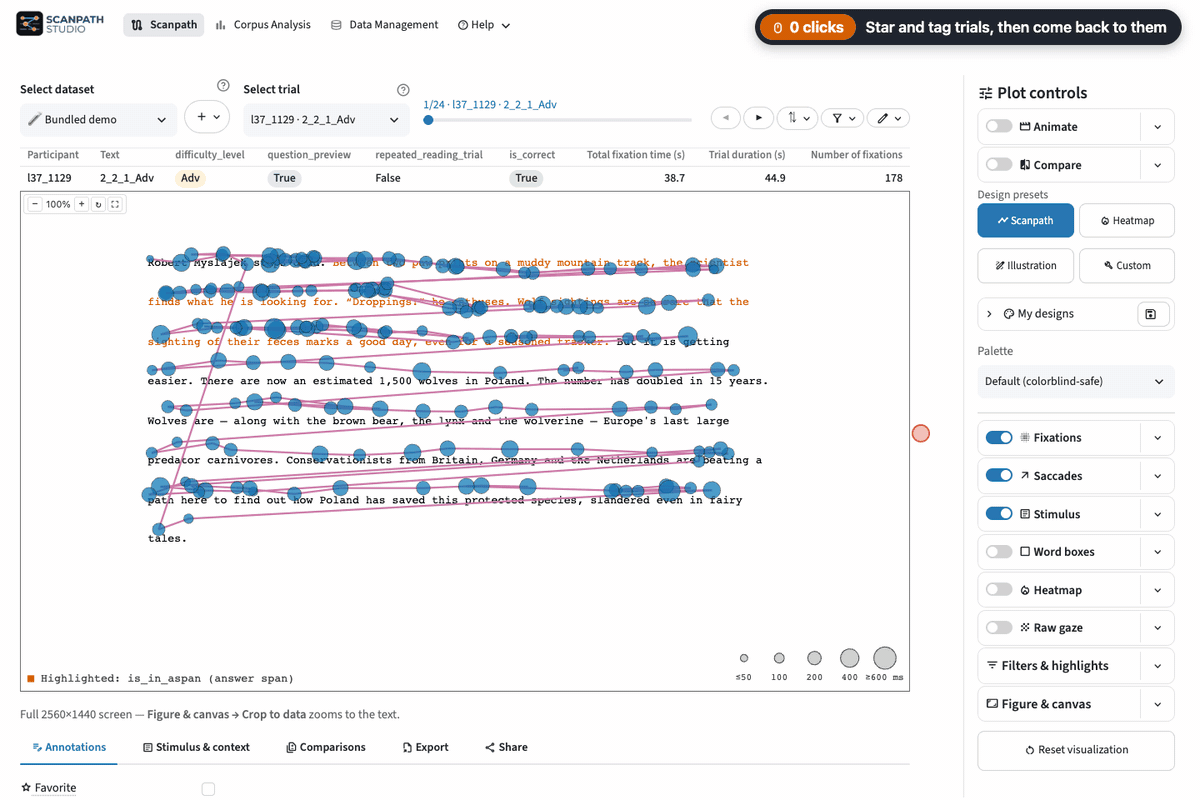

| Star and tag trials, then show only the starred ones | Style the plot: regressions in their own color, word boxes, the reading order, a palette |
 |
 |

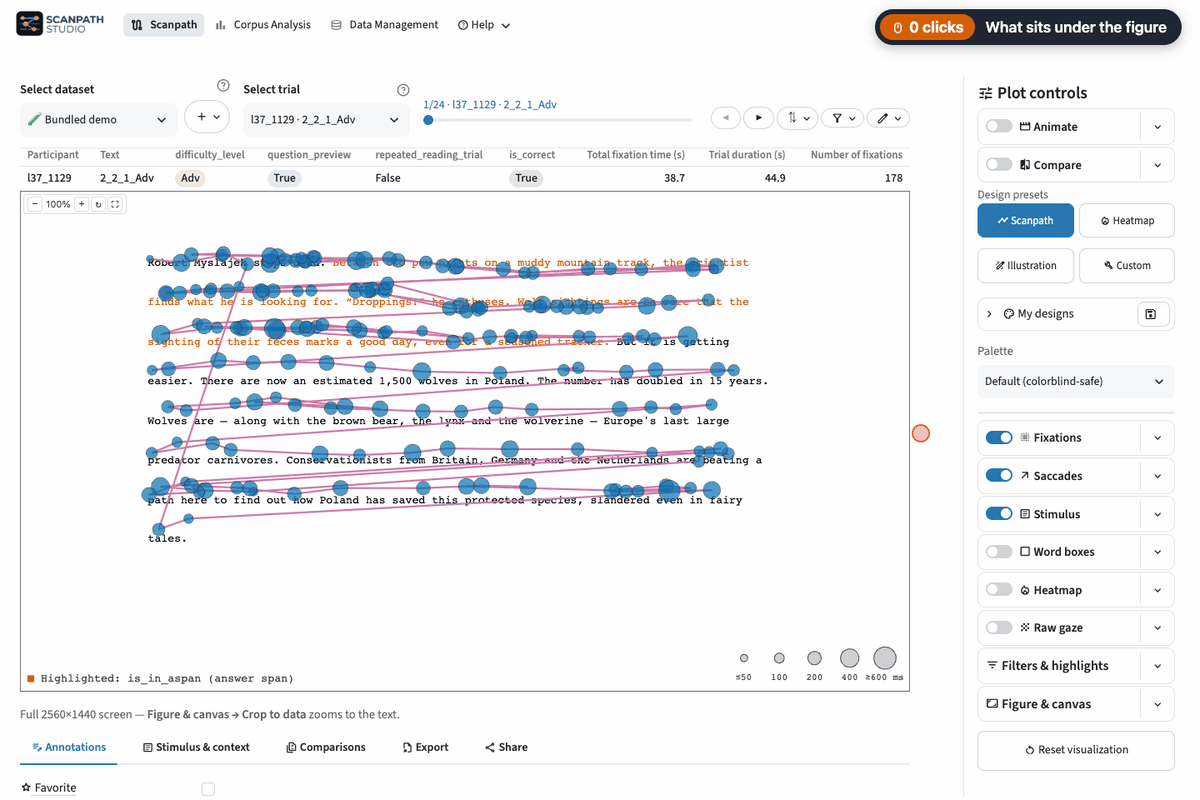

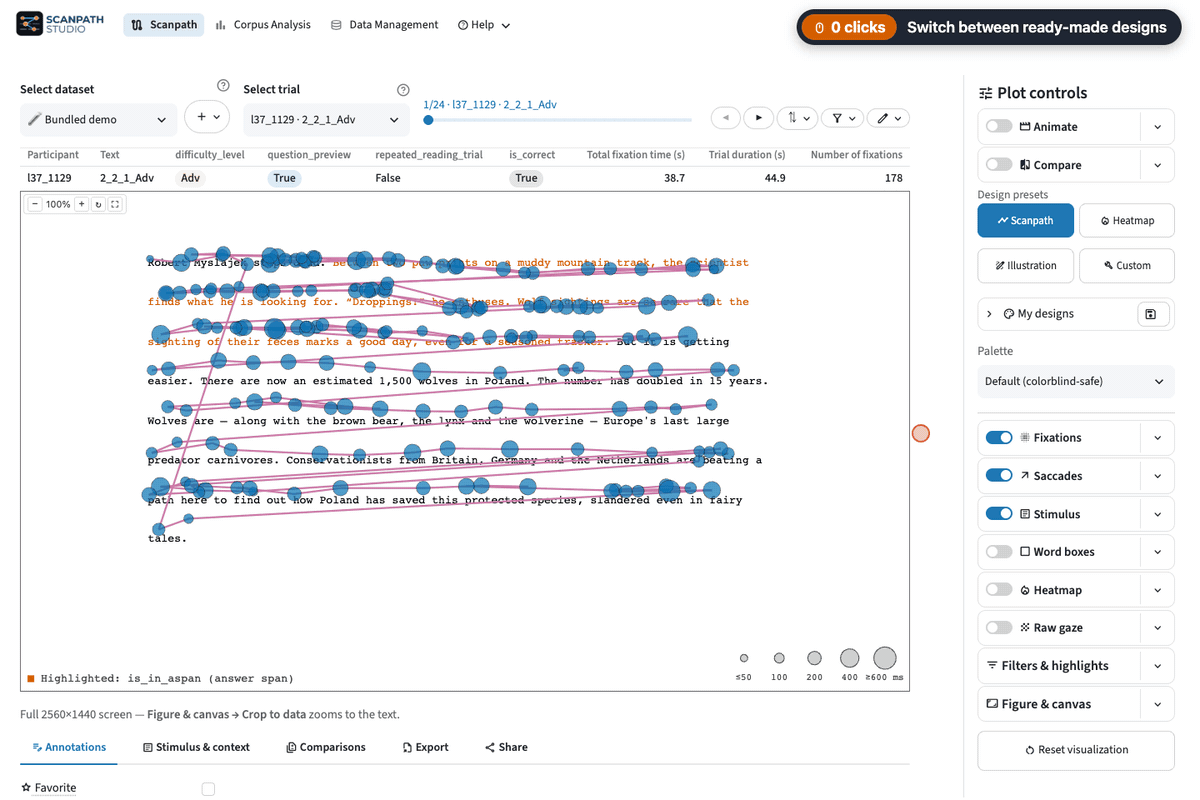

| Ready-made designs: Heatmap, Illustration, Scanpath, then a heatmap on top | Under the figure: annotations, the stimulus and its context, matching trials, export, share |
 |
 |

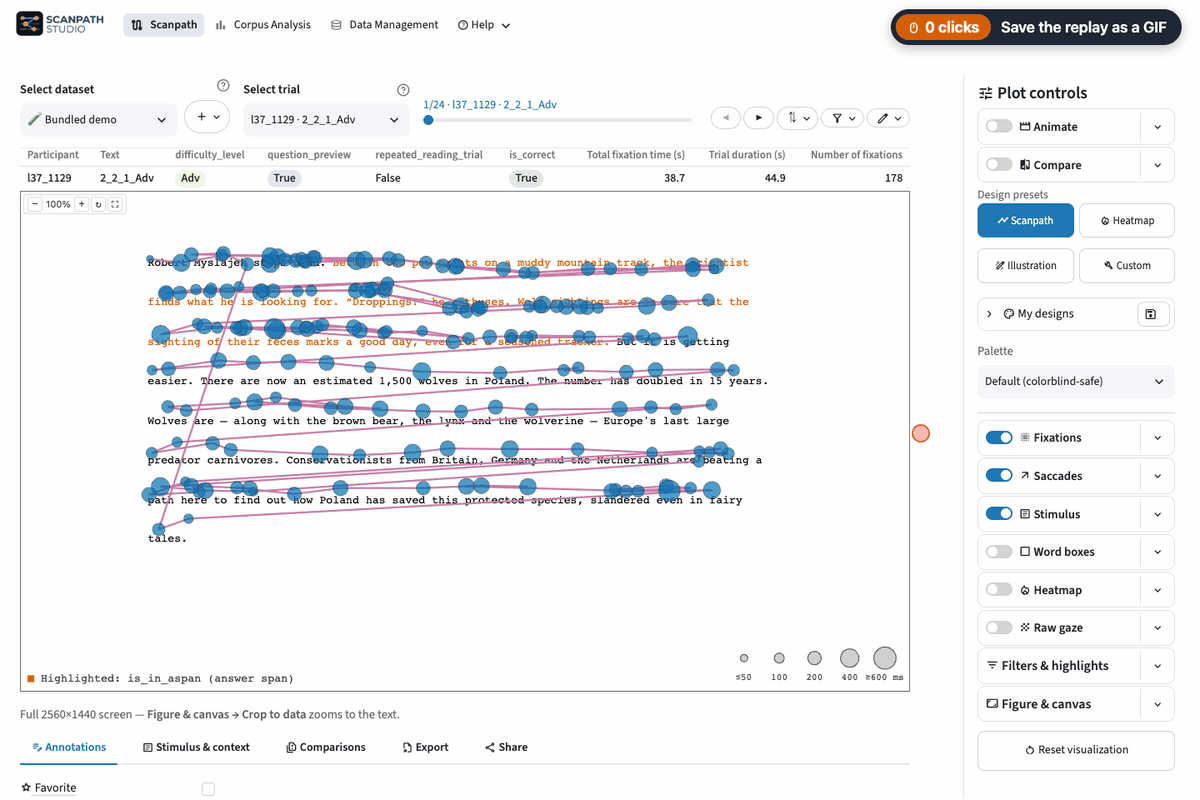

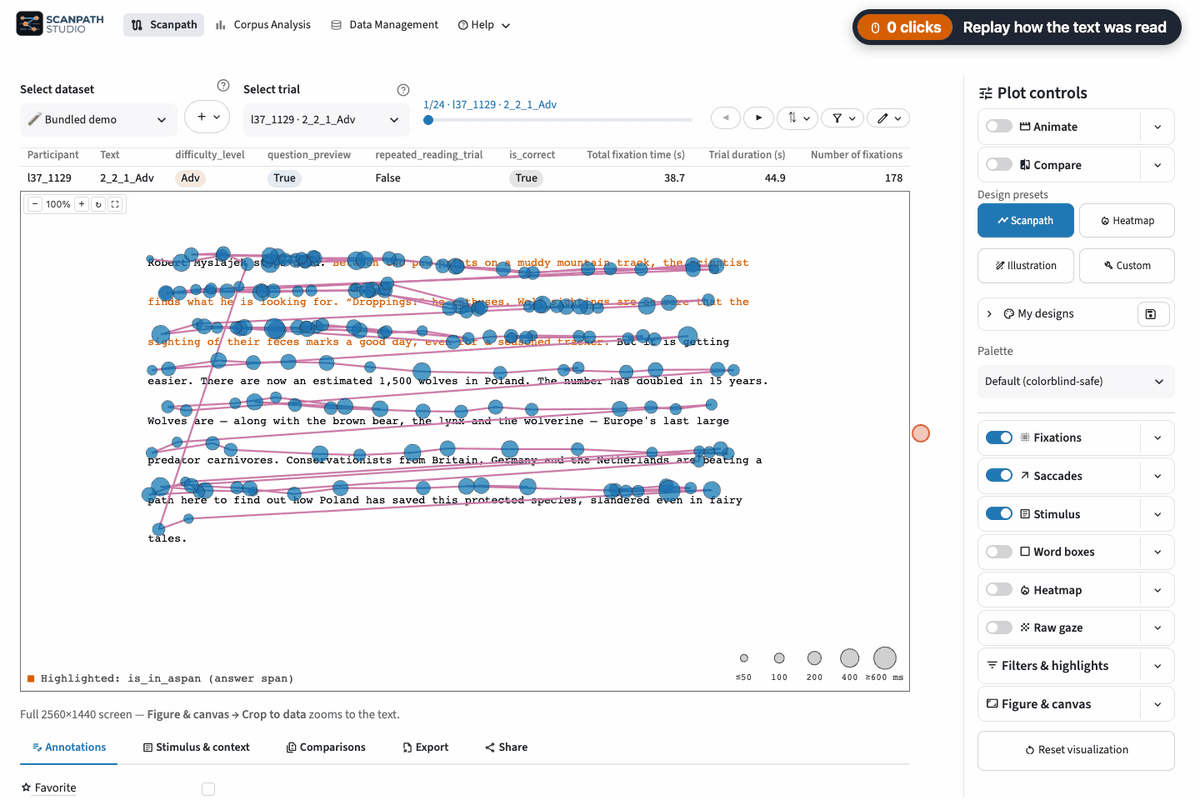

| Replay the reading fixation by fixation, here at ×4 | Save the replay as a GIF for a talk |
 |
 |

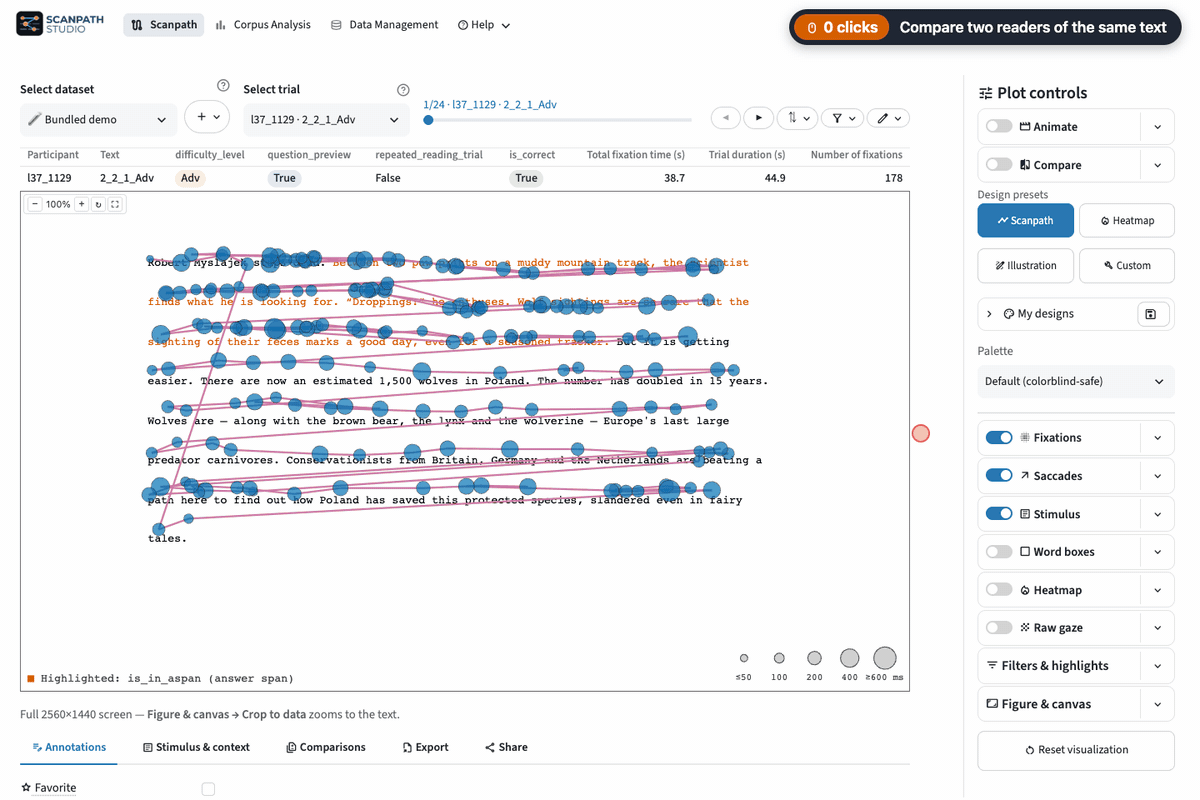

| Compare two readers of a text side by side, stepping through the texts together | Corpus Analysis: a measure on the stimulus, against surprisal, and between two groups |
 |
 |
| Export a figure for a paper, 180 mm wide at 300 dpi | Export every trial, figures and tables, as one zip |
 |
|

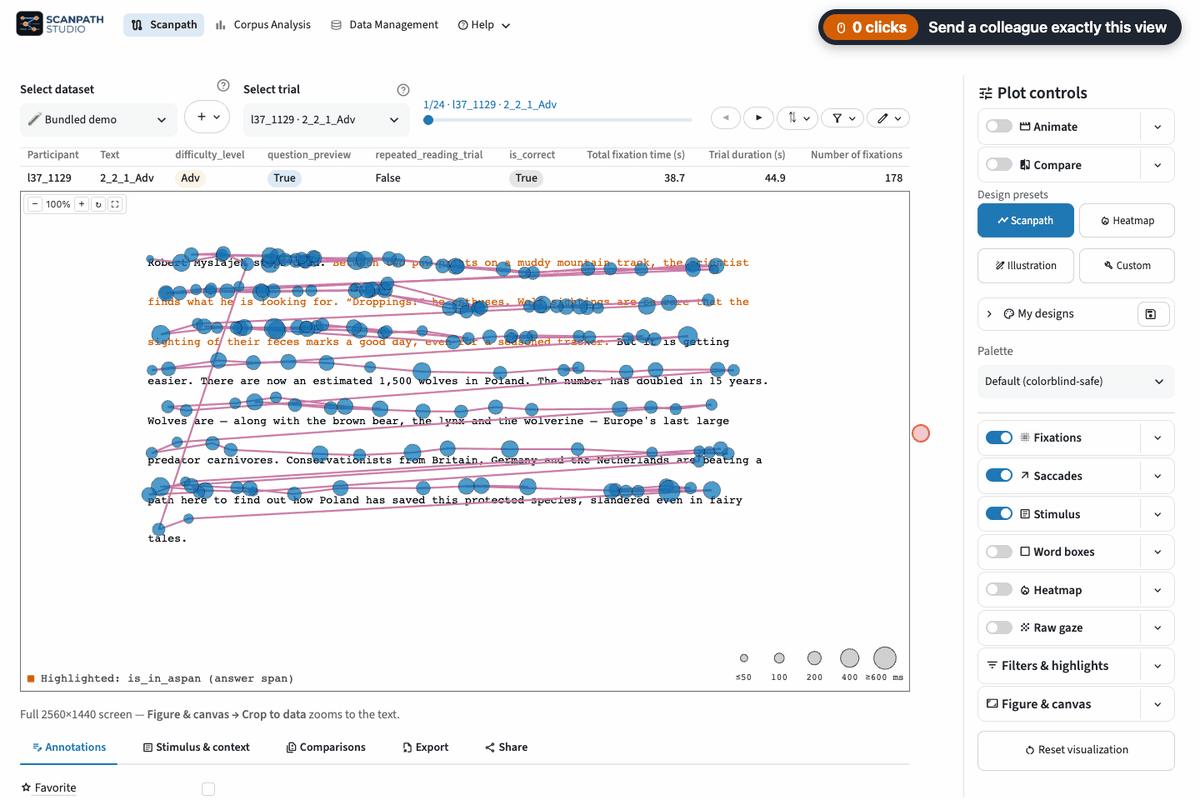

| Share a link that reopens the same trial and design, or the code that redraws it |
Load word, fixation and raw-gaze tables in CSV, Parquet, Excel or another common format. Scanpath Studio adapts to how your study was recorded, so there is rarely anything to reformat first — see Loading public and own data.
Everything the app draws is also available headless — same pipeline, same figure. These run as-is on the bundled demo:
scanpath-studio render --sample --list-trials # the demo's trials
scanpath-studio render --sample -o scanpath.html # one trial, interactive HTML
scanpath-studio render --sample --animate -o replay.html
scanpath-studio render --sample -p l37_1129 -t l37_1129_2_1_1_Ele_r0 \
--compare-with l7_1090:l7_1090_2_1_1_Ele_r0 -o compare.htmlimport scanpath_studio as sps
words, fixations = sps.load_sample_data()
print(sps.list_trials(words, fixations).head())
fig = sps.plot_scanpath(words, fixations, "l37_1129", "l37_1129_2_1_1_Ele_r0")
sps.save_figure(fig, "scanpath.html")For your own files, pass --words ia.csv --fixations fix.csv to render, or
use sps.load_scanpath_data("ia.csv", "fix.csv"). HTML output needs nothing
else; PNG, SVG and PDF (and GIF/MP4 replays) go through Kaleido, which needs
Chrome, Chromium or Edge, or run plotly_get_chrome -y once. The
CLI reference and the
Python API reference list
every flag and parameter.
The full documentation is at https://lacclab.github.io/scanpath-studio/:
- Getting started: install, launch and a first trial
- Tutorials: task walk-throughs, from checking a pilot to a figure for a paper
- Feature guides: every view and control
- Loading public and own data: what the loader accepts and how to map it
- CLI and Python API: scripting and batch rendering
- Gallery: the figures it draws, each with the code that makes it
- Computation register: how each measure is derived
- FAQ · Cite
git clone https://github.com/lacclab/scanpath-studio.git
cd scanpath-studio
pip install -e ".[test]" # or: uv sync --extra test --extra lint
streamlit run streamlit_app.py --server.address 127.0.0.1
pytest -n autoCONTRIBUTING.md
covers setup, the checks that gate CI, and how work is tracked in
GitHub Issues;
AGENTS.md is
the architectural map. To preview the docs site locally, run
pip install -e ".[docs]" and then mkdocs serve.
Taking part means following the Code of Conduct.
A paper is in preparation. Until then, cite the software by its DOI, 10.5281/zenodo.22933884 (GitHub's Cite this repository button formats it as APA or BibTeX). If you use the bundled demo, a subset of OneStop Eye Movements, please also cite:
@article{berzak2025onestop,
title = {{OneStop}: A 360-Participant {E}nglish Eye Tracking Dataset
with Different Reading Regimes},
author = {Berzak, Yevgeni and Malmaud, Jonathan and Shubi, Omer
and Meiri, Yoav and Lion, Ella and Levy, Roger},
journal = {Scientific Data},
year = {2025},
publisher = {Nature Publishing Group},
doi = {10.1038/s41597-025-06272-2},
url = {https://www.nature.com/articles/s41597-025-06272-2},
}Scanpath Studio was built with AI assistance. Cross-check results before publishing. If something looks wrong — or if you have a feature request or suggestion — report it.
