USB Explorer

Visual USB topology and debugging for Linux

Features

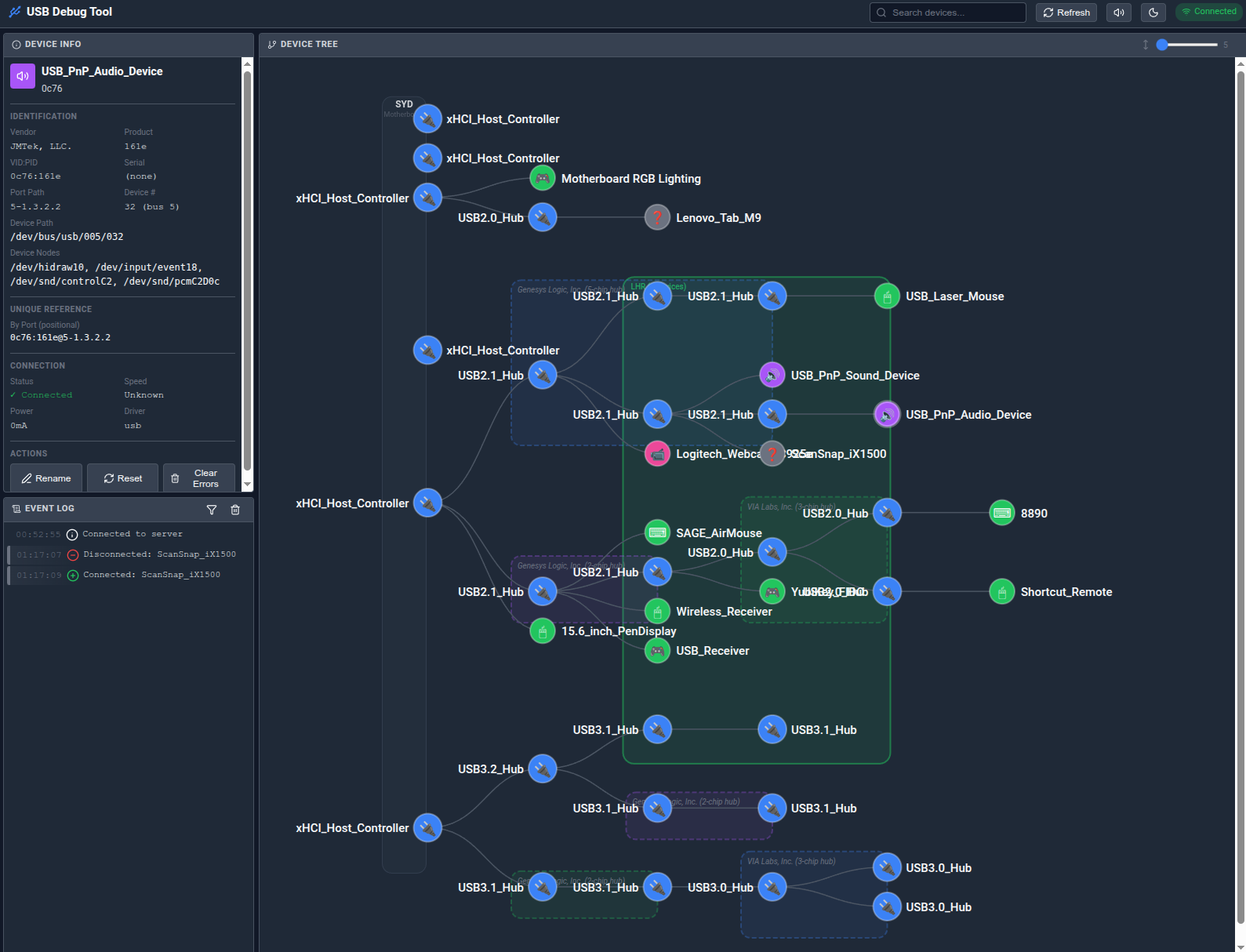

• Live Device Tree: Visual representation of USB topology with hub grouping
• Real-time Updates: Instant notification of device changes via WebSocket
• Error Detection: Automatic parsing of dmesg for USB errors
• Audio Alerts: Sound notifications for plug/unplug events
• Device Reset: Reset problematic devices from the UI
• Custom Names: Label your devices and hub groups for easy identification
• Search: Find devices by name, vendor, product ID, or path
• Device Nodes: Shows /dev paths like /dev/ttyACM0, /dev/sda

Limitations

It's hard to know what physcially makes up a USB hub! The process is heuristic and doesn't always get it right. As such there's a function to discover what the hubs are by switching them on and off and noticing what turns on/off at the same time. This could affect storage devices or other device with state, so we caution the user, but caveat emptor!

Requirements

• Python 3.9+
• Linux with udev
• Root/sudo access (optional, for device reset feature)

Installation

Using pipx (recommended)

# Install system dependency first
# Debian/Ubuntu:
sudo apt install libudev-dev
# Fedora/RHEL:
sudo dnf install systemd-devel

# Install USB Explorer
pipx install usb-explorer

Using pip

# Install system dependency (see above)

pip install usb-explorer

From source

# Clone the repository
git clone https://github.com/appositeit/usb-explorer.git
cd usb-explorer

# Install system dependency (see above)

# Option 1: Install with pip
pip install -e .

# Option 2: Use the install script (creates virtual environment)
./install.sh

Quick Start

# Start USB Explorer (browser opens automatically)
usb-explorer

# Or with root privileges (enables device reset feature)
sudo usb-explorer

# The browser will open automatically to http://localhost:8080

Usage

# With browser auto-open (default)
usb-explorer

# Without browser
USB_EXPLORER_OPEN_BROWSER=0 usb-explorer

# Custom port
USB_EXPLORER_PORT=9000 usb-explorer

# Run as Python module
python -m usb_explorer

Configuration

Copy and edit config/devices.yaml (created automatically on first run):

# Server settings
port: 8080
host: 0.0.0.0
auto_open_browser: true

# Custom device names
devices:
  - vendor_id: "05e3"
    product_id: "0610"
    custom_name: "Main USB Hub"
    notes: "Connected to monitor"

# Hub group labels (displayed on hub boxes in the tree)
hub_labels:
  motherboard: MOBO
  05e3:0610@5-1: DESK

Environment Variables

Variable	Default	Description
USB_EXPLORER_PORT	8080	Server port
USB_EXPLORER_HOST	0.0.0.0	Server bind address
USB_EXPLORER_OPEN_BROWSER	1	Auto-open browser (0 to disable)

API Endpoints

Endpoint	Method	Description
/	GET	Main UI
/ws	WebSocket	Real-time updates
/api/devices	GET	Device tree JSON
/api/device/{path}	GET	Single device info
/api/device/{path}/reset	POST	Reset device
/api/device/name	POST	Set custom device name
/api/hub-labels	GET/POST	Get/set hub group labels
/api/errors	GET	Recent USB errors
/api/health	GET	Health check
/api/shutdown	POST	Graceful shutdown

Troubleshooting

"Permission denied" errors

Some features require root access:

sudo usb-explorer

No devices showing

• Ensure libudev is installed: sudo apt install libudev-dev
• Check udev is running: systemctl status udev

WebSocket disconnects

• Check firewall allows the configured port
• Try a different browser

lsusb shows "unable to initialize usb spec"

This is an AppArmor issue. Create /etc/apparmor.d/local/lsusb:

/etc/udev/hwdb.bin r,
/usr/share/hwdata/usb.ids r,
/var/lib/usbutils/usb.ids r,

Then reload: sudo apparmor_parser -r /etc/apparmor.d/lsusb

Uninstall

./uninstall.sh

License

MIT License - see LICENSE for details.
