Indoor air pollution is often invisible, yet it can significantly impact our health and comfort. AirSense is an open-source smart air purifier that combines real-time environmental monitoring, intelligent purification, and cloud connectivity into a single device.
Powered by the Waveshare ESP32-S3, AirSense continuously measures PM2.5 dust levels, temperature, humidity, atmospheric pressure, and indoor air quality using dedicated sensors. Live data is displayed on a modern LVGL-powered TFT dashboard and synchronized with Arduino IoT Cloud, allowing remote monitoring and fan control from anywhere.
Designed in Autodesk Fusion, the system features a custom 3D-printed enclosure, HEPA filtration, automatic fan control, and a product-like user experience. This repository includes everything needed to build your own AirSense, including source code, CAD files, circuit diagrams, and setup instructions.
AirSense Live Dashboard — PM2.5 Dust · AQI · Temperature · Humidity · Air Quality · Feed Rate · Filter Health · Wi-Fi Status

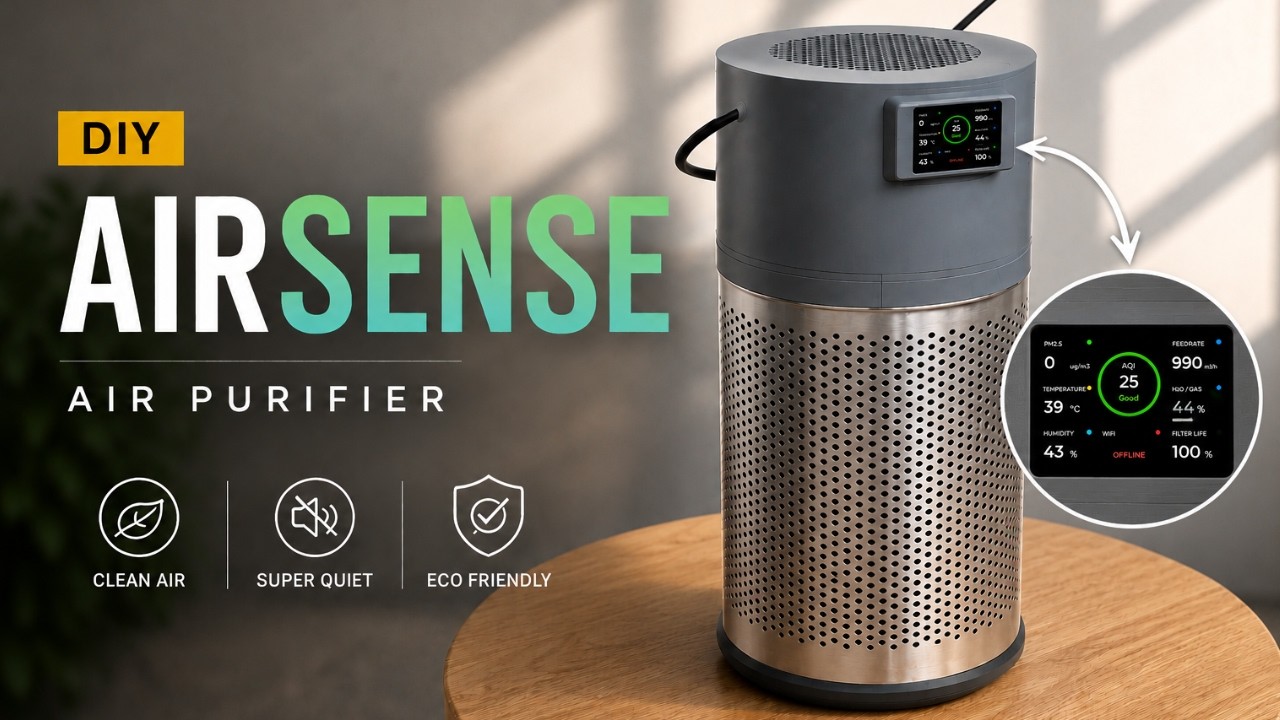

▶ Click to watch the full build and demo on YouTube
AirSense combines intelligent air purification, environmental monitoring, and cloud connectivity into a single product-grade device. It continuously monitors PM2.5 dust levels, AQI, temperature, humidity, atmospheric pressure, and indoor air quality in real time, presenting all information through a beautiful LVGL-powered dashboard. The system uses a Xiaomi Air Purifier 4 Lite HEPA filter, capable of capturing up to 99.97% of airborne particles as small as 0.3 μm, helping create a cleaner and healthier indoor environment.
Built around the ESP32-S3, AirSense synchronizes live data with Arduino IoT Cloud, enabling remote monitoring and control from anywhere through a smartphone, tablet, or web browser. The custom enclosure, designed in Autodesk Fusion 360, delivers a clean product-like appearance while maintaining easy assembly and maintenance. With complete source code, CAD files, circuit diagrams, and documentation included, AirSense is a fully open-source platform designed for learning, customization, and real-world everyday use.
Fusion 360 CAD — cylindrical body · hexagonal intake grille · side-mounted TFT cutout · Next Builder branding
The enclosure is designed around the Xiaomi Air Purifier 4 Lite HEPA filter, creating a compact and efficient airflow path. A 150mm high-airflow fan is mounted at the top, drawing contaminated air through the filter and exhausting clean air upward. The 2.4-inch TFT display is seamlessly integrated into a precision-cut side panel for a clean, product-like appearance. An 18L stainless steel dustbin serves as the main structural body, providing excellent durability, a premium finish, and easy availability for replication.
All electronic components
 Xiaomi Air Purifier 4 Lite True HEPA Filter — 0.3 µm |
 18L Open-Top Steel Dustbin Structural enclosure body |
 Anchor 150mm Exhaust Fan 220V Smart Air — circulation |
Full BOM with purchase links is in the Instructables tutorial →
Inside view after complete wiring and assembly
Wiring Notes
- The relay switches the 220V AC fan, so always disconnect mains power before making any wiring changes or performing maintenance.
- The dust sensor relies on a precise LED pulse timing sequence for accurate measurements. The sampling logic used in the firmware should remain unchanged.
- The BME680 communicates via the I²C interface, using dedicated SDA and SCL connections on the ESP32-S3.
- The TFT display operates over SPI. Ensure all display pins, including CS, DC, and RST, match the assignments defined in the provided
User_Setup.hfile. - Before powering the system, verify all power, signal, and ground connections to ensure safe and reliable operation.
AirSense continuously monitors the surrounding environment using dedicated air quality and environmental sensors. Every few seconds, the system measures PM2.5 dust concentration, temperature, humidity, atmospheric pressure, and indoor air quality, providing a real-time view of indoor environmental conditions.
The collected data is processed by the ESP32-S3, which calculates the Air Quality Index (AQI) and updates all measurements on the built-in LVGL-powered dashboard. Users can instantly view key air quality metrics through a clean and intuitive graphical interface. At the same time, sensor readings are synchronized with Arduino IoT Cloud over Wi-Fi, allowing remote monitoring from anywhere using a smartphone, tablet, or web browser.
The purification fan operates continuously to draw air through the HEPA filtration system, where dust and airborne particles are captured before clean air is released back into the environment. Users can manually turn the purifier on or off at any time using the Arduino IoT Remote App, providing convenient control from anywhere. By combining real-time monitoring, cloud connectivity, and continuous air purification, AirSense helps users better understand and improve the quality of the air they breathe every day.
Want to build your own AirSense? Complete step-by-step instructions, cloud configuration, wiring details, assembly photos, and testing procedures are available in the full written tutorials below.
Whether you're a beginner exploring IoT and air quality monitoring or an experienced maker looking to customize the design, these guides will walk you through the entire build process from start to finish.
-
Instructables https://www.instructables.com/AirSense-the-Smartest-DIY-Air-Purifier/
-
Hackster.io https://www.hackster.io/NEXTBUILDER/airsense-the-smartest-diy-air-purifier-f775f8
-
Hackaday.io https://hackaday.io/project/205928-airsense-the-smartest-diy-air-purifier
-
ElectronicWings https://www.electronicwings.com/users/NextBuilder/projects/6592/airsense---the-smartest-diy-air-purifier
All project resources, including firmware, CAD models, library configuration files, and circuit diagrams, are available in this GitHub repository.
Open for personal and educational use only. Commercial use, resale, or redistribution in any product requires explicit written permission from the author.
