🕵️‍♂️ SPECTRAL GHOST

Spectral Ghost is a high-precision, low-latency spectral reconnaissance engine that acts as a digital "microscope" for creators, allowing real-time extraction of pixel genetic makeup across Windows, macOS, and Linux systems.

✨ Features

🔬 Real-Time Pixel Analysis

11×11 pixel sampling around cursor with 30ms refresh rate
10× pixel-perfect magnification using nearest-neighbor scaling
Dynamic grid overlay for precise sub-pixel orientation
Center-pixel isolation with high-contrast reticle targeting

🎨 Intelligent Color Matching

9,284+ named colors from Michael Krzywinski's comprehensive database
KDTree spatial search for microsecond color identification
Euclidean distance metrics with confidence percentages
Visual match indicators (Teal/Yellow/Pink) for immediate feedback

🖥️ Adaptive UI System

Luminance-aware text outlining for maximum readability on any color
Dynamic font scaling & text wrapping based on color name length
Adjustable opacity (20-100%) for non-intrusive monitoring
Compact mode toggle for minimal screen footprint
Cross-platform clipboard integration for hex code copying

🌐 Cross-Platform Compatibility

Native Windows support with DPI awareness
macOS compatibility with proper permission handling
Linux support across major distributions
Consistent performance across all operating systems

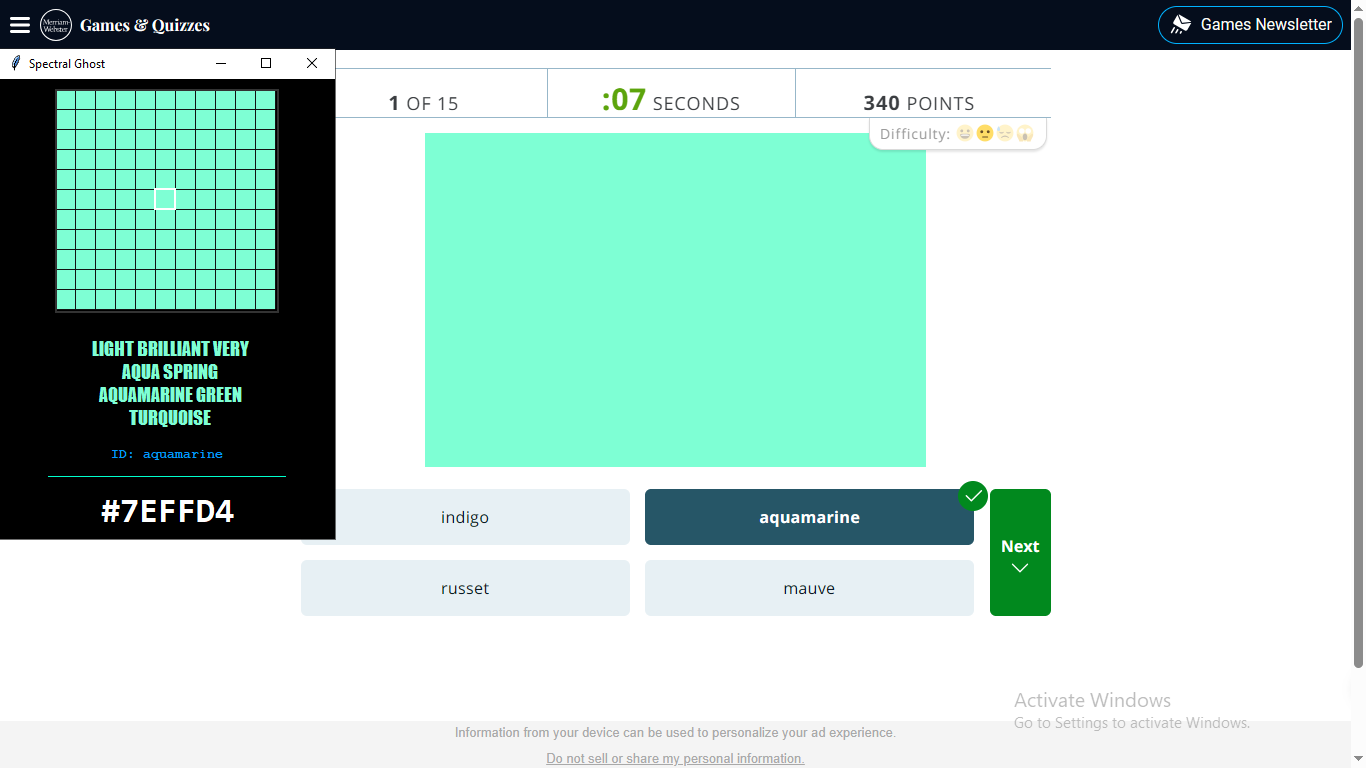

🖼️ Preview

🚀 Quick Start

Installation

# Clone the repository
git clone https://github.com/DAPOWER99/spectral-ghost.git
cd spectral-ghost

# Create virtual environment
python -m venv venv

# Activate environment
# Windows:
.\venv\Scripts\activate
# macOS/Linux:
source venv/bin/activate

# Install dependencies
pip install -r requirements.txt

Requirements File

pillow>=10.0.0
pyautogui>=0.9.54
numpy>=1.24.0
scipy>=1.10.0

First Run

python spectral_ghost.py

Note: On macOS, you may need to grant Screen Recording permissions in System Preferences.

📁 Project Structure

spectral-ghost/
├── spectral_ghost.py          # Main application (cross-platform)
├── requirements.txt           # Python dependencies
├── Data/
│   └── 9k-color.names.txt     # Color database (9,284 colors)
├── README.md                  # This documentation
└── LICENSE                    # MIT License

🧠 How It Works

1. Pixel Capture Pipeline

Mouse Position → 11×11 Screen Grab → Center Pixel Extraction → 10× Magnification

2. Color Matching Algorithm

Input: Sampled RGB pixel (r₁, g₁, b₁)
Search: KDTree nearest-neighbor in 9,284-color database
Distance: Euclidean calculation: √((r₁-r₂)² + (g₁-g₂)² + (b₁-b₂)²)
Confidence: Percentage: max(0, 100 - (distance / 2.55))

3. Adaptive Display Logic

Luminance Calculation: L = 0.299R + 0.587G + 0.114B
Text Contrast: White outline if L < 100, black otherwise
Font Scaling: 24pt (≤12 chars), 18pt (≤24 chars), 14pt (>24 chars)

🎮 Controls

Button	Action	Description
FREEZE	Toggle sampling	Locks/unlocks current color analysis
MINIMAL	Toggle UI size	Switches between full (340×780) and compact (340×460) views
OPACITY -	Decrease opacity	Reduces window transparency (minimum 20%)
OPACITY +	Increase opacity	Increases window transparency (maximum 100%)
COPY HEX	Copy to clipboard	Copies #RRGGBB hex code to system clipboard

📊 Technical Specifications

Component	Technology	Details
Language	Python 3.8+	Compatible with all modern Python versions
UI Framework	Tkinter	Native cross-platform GUI toolkit
Graphics	PIL (Pillow)	Image processing and display
Screen Capture	PyAutoGUI	Cross-platform cursor and screen access
Math Engine	SciPy + NumPy	KDTree search and vector mathematics
Color Database	Michael Krzywinski	9,284 named colors (CC0/public domain)
Refresh Rate	30ms loop	~33.3 Hz real-time updates
Sampling	11×11 region	121 pixels captured per frame
Display	220×220 canvas	10× pixel-perfect magnification

🌈 Color Match Indicators

Color	Hex	Distance	Confidence	Meaning
Teal	`#00ffcc`	< 15	> 94%	High-fidelity match
Yellow	`#ffcc00`	15-50	80-94%	Approximated match
Pink	`#ff0055`	≥ 50	< 80%	Unique signature

🔧 Platform-Specific Setup

Windows

DPI Aware: Automatically scales for high-resolution displays
No permissions required: Works out of the box
Recommended: Python 3.8+ installed from python.org

macOS

# Required permissions (first run):
# 1. System Preferences → Security & Privacy → Privacy
# 2. Select "Screen Recording"
# 3. Add Terminal or your IDE to allowed apps

# Optional: Install via Homebrew
brew install python-tk

Linux

# Ubuntu/Debian dependencies
sudo apt-get install python3-tk python3-dev

# Fedora/RHEL
sudo dnf install python3-tkinter

# Arch Linux
sudo pacman -S tk

🎯 Use Cases

🎨 Design & Creative Work

Extract color palettes from references
Match brand colors across materials
Check accessibility contrast ratios
Capture inspiration from screenshots

💻 Development & QA

Verify UI implementation matches designs
Debug color rendering issues
Extract CSS variables from live sites
Test color consistency across platforms

📚 Education & Research

Visualize color space relationships
Study named color databases
Demonstrate real-time algorithms
Analyze digital color representations

📝 License

This project is licensed under the MIT License - see the LICENSE file for details.

Color Database Attribution

The color names database (Data/9k-color.names.txt) is based on Michael Krzywinski's Color Name Database and is provided under CC0 / Public Domain terms.

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

Fork the repository
Create a feature branch (git checkout -b feature/AmazingFeature)
Commit changes (git commit -m 'Add AmazingFeature')
Push to branch (git push origin feature/AmazingFeature)
Open a Pull Request

🙏 Acknowledgments

Michael Krzywinski for the comprehensive color name database
Python & Tkinter communities for cross-platform GUI foundations
SciPy & NumPy teams for high-performance mathematical tools
All contributors and testers for feedback and improvements

📞 Support & Issues

Found a bug or have a feature request? Please check:

Issues for existing reports
Troubleshooting section below
Create a new issue with detailed information

Common Issues & Solutions

macOS: "Screen Recording" permission denied

Solution: System Preferences → Security & Privacy → Privacy → Screen Recording
Add your terminal application (Terminal, iTerm2) to the allowed list.

Linux: Tkinter not found

Solution: Install python3-tk package:
sudo apt-get install python3-tk  # Ubuntu/Debian
sudo dnf install python3-tkinter # Fedora

Database file not found

Solution: Ensure Data/9k-color.names.txt exists in the same directory as spectral_ghost.py

Performance issues

Solution: Close other screen capture software
Reduce system transparency/effects
Update graphics drivers

🚀 Roadmap

Planned Features

Color history palette with swatch storage
Advanced color spaces (LAB, CMYK, XYZ conversion)
Export formats (ASE, ACO, CSS, JSON)
Batch processing for image color extraction
Plugin system for custom color databases
API mode for integration with other tools

Known Limitations

Screen capture may be blocked by security software
High-DPI scaling varies by platform
Requires color database file in Data/ directory
30ms minimum refresh rate (hardware dependent)

"See the colors between the pixels."

Platform Tested: Windows 10/11, macOS 12+, Ubuntu 22.04+, Fedora 38+
Last Updated: Version 1.0.0 (First Pre-Release)

Maintainer: DAPOWER99
