htfa

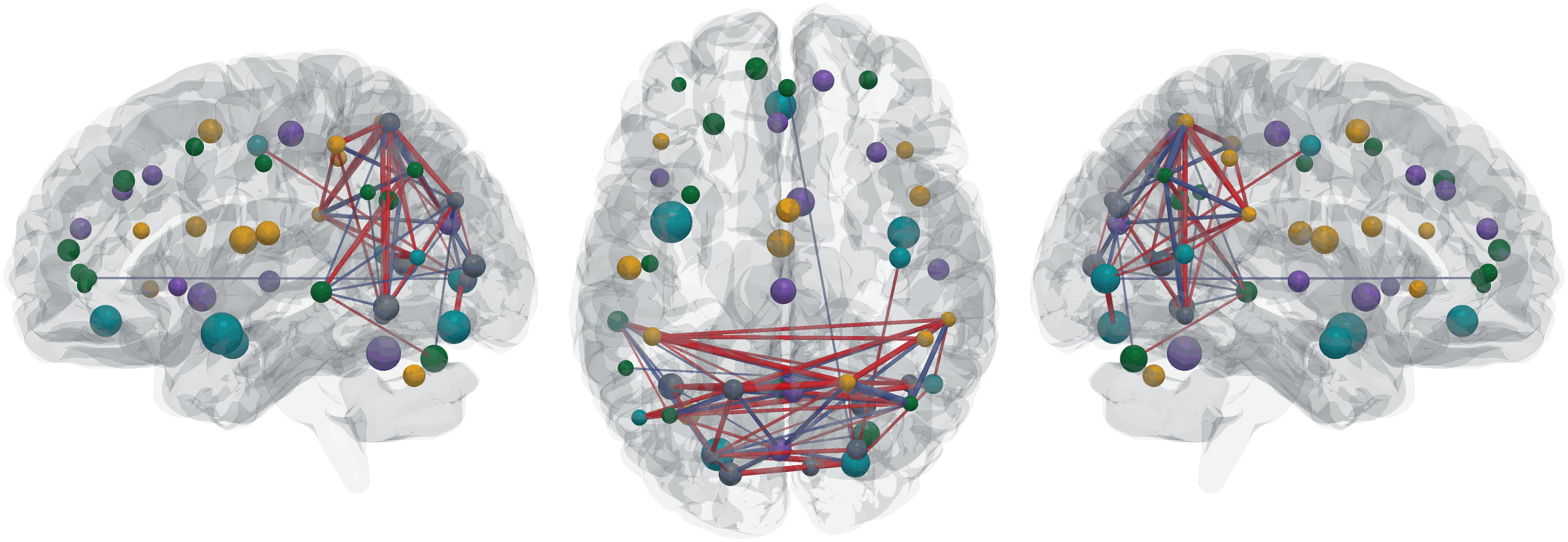

_{Illustrative movie-viewing analysis: an HTFA template (K = 50) fitted to 12 adults watching Pixar's Partly Cloudy, from Nilearn's development_fmri dataset, viewed from the left, above and right. Inter-subject functional correlation (ISFC) measures correlations between participants' factor time courses at matching moments of the film. Edges show the strongest 5% of factor pairs (|ISFC| ≥ 0.137; red positive, blue negative). Node size represents factor width; node colour identifies communities in the positive-ISFC graph. See the ISFC tutorial for the analysis workflow.}

Overview

Topographic factor analysis (TFA) models a data matrix X (voxels by time points) as X ≈ F W + noise. Each of the K factors is a spatial kernel, or a mixture of kernels, with fitted centers and widths in coordinate space. W holds the factors' weights over time [1]. Hierarchical TFA (HTFA) fits TFA to several subjects at once, with a global template that the per-subject factors are tied to [2, 3, 4].

The examples use simulated data, movie-viewing fMRI, a word-viewing experiment, and ordinary 2D images to illustrate different parts of the API. TFA and HTFA do not require a particular task: the inputs are observations at spatial coordinates. HTFA fits can have different time-series lengths across subjects; analyses that correlate subjects at matching time points, such as ISFC, additionally require aligned samples.

htfa is a standalone Python implementation of these algorithms. Its numerical validation includes comparisons with BrainIAK; BrainIAK is not a runtime dependency.

• No MPI or local compilation is needed when installing the prebuilt dependency wheels for a supported platform.
• Analytic Jacobian for the center/width least-squares problem (htfa/_kernels.py).
• A NumPy engine and a torch engine (CUDA, Apple Metal, CPU), chosen with the estimators' backend argument; auto uses a GPU only for large problems when torch is already installed. HTFA distributes independent subjects across visible CUDA GPUs; gpu_devices selects a subset.
• Two solver modes: mode='fast' (the default) and mode='exact' (the reference for numerical equivalence and BrainIAK checks). The modes optimize the same objective but can reach different local minima; see Performance and Validation.
• Factor shapes: Gaussian (kernel='rbf', the default), 'laplace' and 'mexican_hat', and mixtures of several components per factor (n_components).
• Nested subject groups with group-level templates and permutation comparisons.
• Reconstruction R² and nominal conditional Gaussian AIC, AICc and BIC (htfa.stats).
• Inputs: NIfTI files and folders, nilearn/nibabel objects, numpy arrays and 2D images.
• Synthetic data with ground truth (htfa.synthetic), factor-level connectivity, a results object, and BrainNet Viewer-style 3D network plots (htfa.brainnet).

Quick tour

The quick-start guide walks through fitting, inspecting, and plotting a model, then loading your own images.

Generate synthetic data for three subjects with known factor parameters, fit HTFA, and compare the recovered centers with the truth:

import htfa
from htfa.synthetic import match_factors

Xs, Rs, truth = htfa.make_htfa_data(
    n_subjects=3, grid_shape=(12, 12, 12), n_samples=60, K=5, random_state=0
)
res = htfa.fit(
    Xs, K=5, coords=Rs, standardize=False, max_global_iter=30, random_state=0
)
print(res.global_centers.shape)  # template centers
print(res.weights[0].shape)  # factor time courses of the first subject
print(res.connectivity(0).shape)  # factor connectivity of the first subject
perm = match_factors(truth["centers"][0], res.centers[0])
print(abs(res.centers[0][perm] - truth["centers"][0]).max())

Output:

(5, 3)
(5, 60)
(5, 5)
0.01688680355447225

For real data, pass a folder with one .nii / .nii.gz file per subject:

res = htfa.fit("path/to/folder", K=50, random_state=0)

Nested folders supply group names and hierarchical templates from their paths. Use groups=False to ignore folder-derived grouping, or pass explicit groups to define the experimental hierarchy yourself. Each file remains one subject; repeated runs from one person are not independent subjects.

The inputs htfa.fit accepts, its parameters and the results object are described in the documentation and in docs/API.md.

Installation

Install the PyPI release:

pip install htfa

For development, using uv:

git clone https://github.com/ContextLab/htfa.git
cd htfa
make install

make install creates .venv (Python 3.12) and installs the package with the dev and docs extras. The package requires Python 3.10 or newer. On Apple Silicon Macs, torch is a core dependency.

Optional extras

Extra	Contents
plot	matplotlib, nilearn
images	pillow, tifffile
nilearn	nilearn
gpu	torch
brain3d	pyvista, imageio, imageio-ffmpeg, pillow (BrainNet Viewer-style network plots and animations, htfa.brainnet)
tutorials	hypertools, sentence-transformers (only to re-execute the word-decoding tutorial)
dev	test, lint, type-checking and packaging tools, plus plotting and image dependencies
docs	sphinx, furo, numpydoc, sphinx-gallery, nbsphinx, and others

Optional dependencies are installed with pip the first time they are needed, using the versions declared for the extra. To turn this off, set the environment variable HTFA_AUTO_INSTALL=0 or call:

import htfa

htfa.set_autoinstall(False)

Documentation

The Sphinx site is built from docs/ with make docs (output in docs/_build/html). Its pages:

• Installation
• Inputs
• Optional dependencies
• Tutorials
• Example gallery
• API reference

Testing

make test

By default, tests marked brainiak or network are deselected. Markers:

• brainiak: compares against the reference BrainIAK implementation (requires brainiak)
• network: requires network access (downloads data)
• gpu: requires a GPU backend (torch with CUDA or MPS)
• slow: long-running test

For example, .venv/bin/pytest -m brainiak runs the BrainIAK comparison tests.

Citing

1. J. R. Manning, R. Ranganath, K. A. Norman, and D. M. Blei (2014). Topographic factor analysis: a Bayesian model for inferring brain networks from neural data. PLoS ONE 9(5). doi:10.1371/journal.pone.0094914
2. J. R. Manning, R. Ranganath, W. Keung, N. B. Turk-Browne, J. D. Cohen, K. A. Norman, and D. M. Blei (2014). Hierarchical topographic factor analysis. 2014 International Workshop on Pattern Recognition in Neuroimaging (PRNI). doi:10.1109/PRNI.2014.6858530
3. J. R. Manning, X. Zhu, T. L. Willke, R. Ranganath, K. Stachenfeld, U. Hasson, D. M. Blei, and K. A. Norman (2018). A probabilistic approach to discovering dynamic full-brain functional connectivity patterns. NeuroImage. doi:10.1016/j.neuroimage.2018.01.071
4. M. J. Anderson, M. Capotă, J. S. Turek, X. Zhu, T. L. Willke, Y. Wang, P.-H. Chen, J. R. Manning, P. J. Ramadge, and K. A. Norman (2016). Enabling factor analysis on thousand-subject neuroimaging datasets. IEEE International Conference on Big Data. doi:10.1109/BigData.2016.7840719

Contributing

See CONTRIBUTING.md.

License

MIT; see LICENSE. htfa/brainnet.py and htfa/timecourse.py adapt code from ContextLab/directed-forgetting-network-dynamics (commit 31a2b66; MIT License, Copyright (c) 2019 Contextual Dynamics Laboratory). The BrainNet Viewer brain meshes used by htfa.brainnet are not included; they are downloaded from NITRC on first use (BrainNet Viewer is distributed under the GNU GPL).
